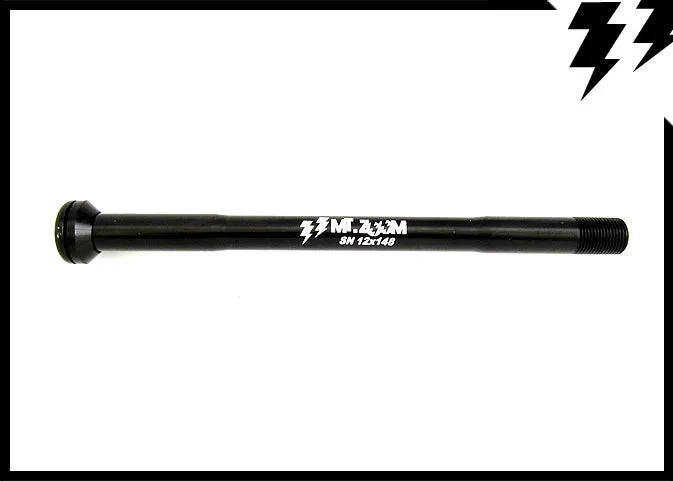

The MT ZOOM Syntace boost style thru axle is simple, light, strong and excellent value. The 12mm x 148mm rear axle boost standard.

This style is the Syntace standard with the conical clamp face to fit into the countersunk recess in the frame (not the flat faced interface). Present on many Specialized, Canyon, Cannondale, BMC, BH frames.

At only 41g – drop some weight from your wheels. Length from base of inner conical clamp to end of thru axle: 165mm

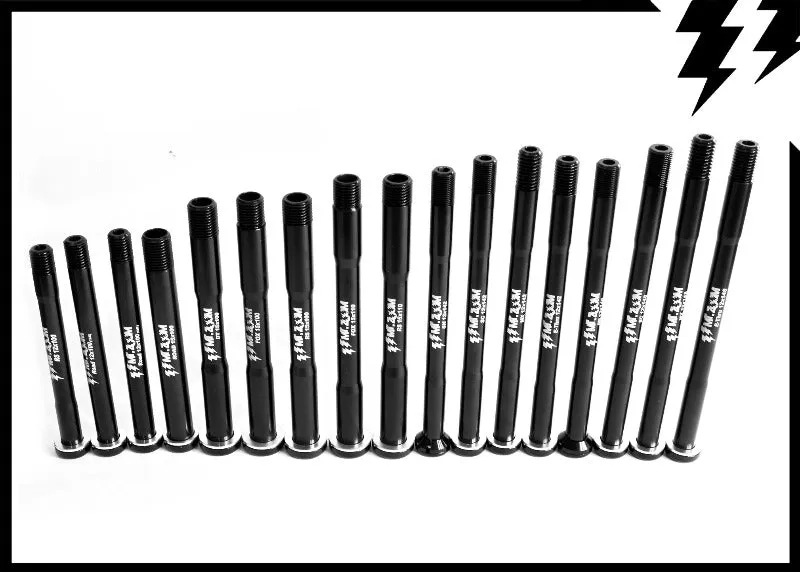

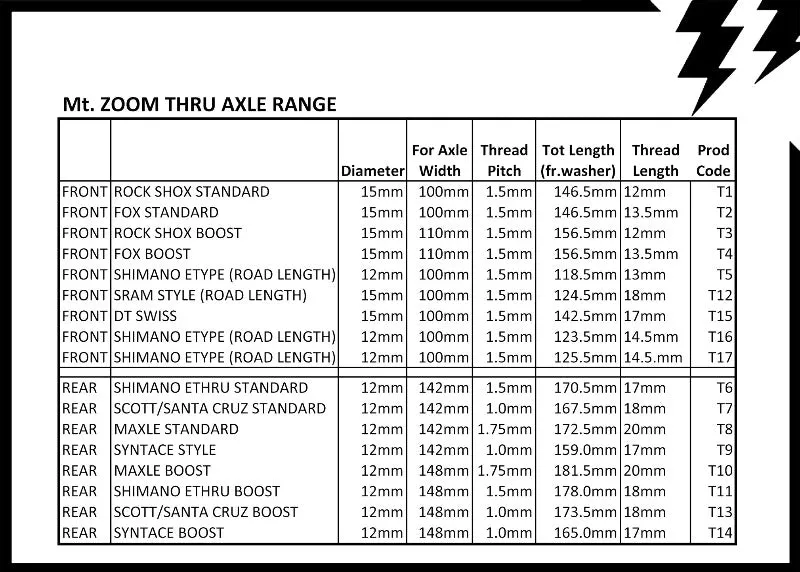

Note some boost frames are designed to still use the standard length axle.  If you are replacing an axle on a boost frame it is worth measuring the length to see whether you need a boost length axle or a standard length one. Cross reference with the picture on here which shows the dimensions of all our axles.

2 year warranty

[split]

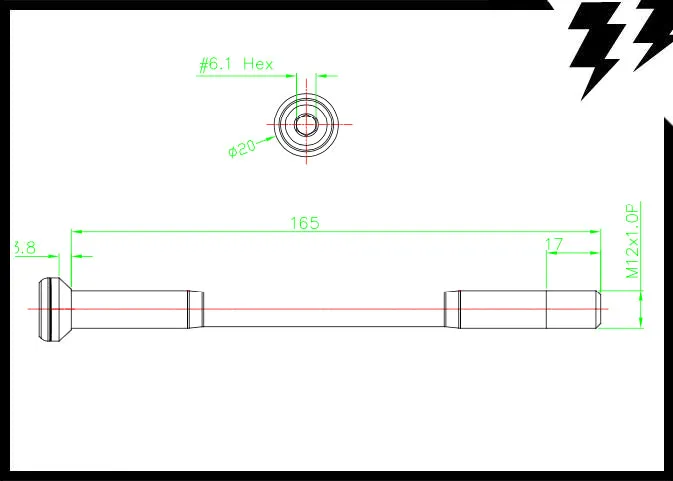

Key technical measurements:
Length from base of inner conical clamp to end of thru axle: 165mm

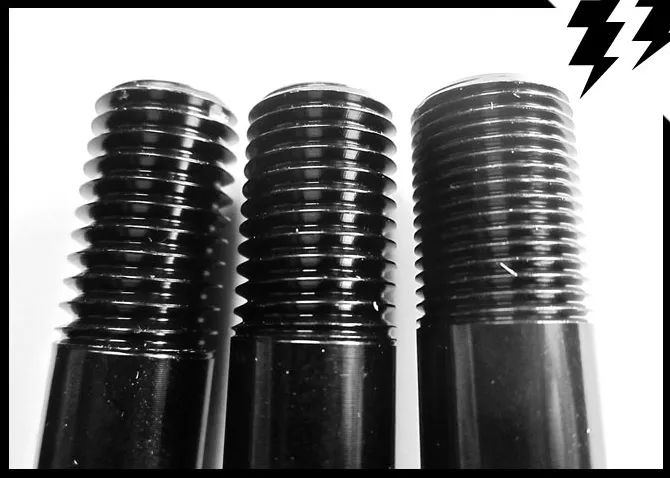

Thread pitch 1mm (the narrowest of the 3 in the photo).
Inset head/washer
Thread area length: 17mm
Inner axle maximum width: 12mm
Product Code: T14

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
